PROTECTIVE HOUSING FOR Auxiliary Battery -A1-, REMOVING AND INSTALLING, 0K4 AND VH0: Installing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

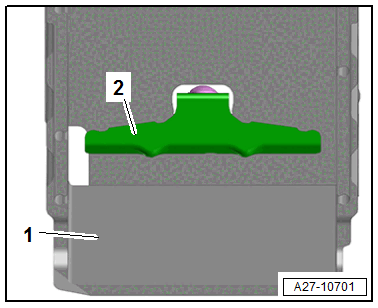

-- Insert the Auxiliary Battery -A1- into the housing -1- and push all the way on the loosened retaining bracket -2-.
- The Auxiliary Battery -A1- must still be able to move.
-- Install the housing cover.
-- Tighten the bolt for the retaining bracket.
-- Push on the pressure vent tube until it audibly locks. Check the pressure vent tube for secure fit by pulling on it.
Further installation is performed in reverse order of removal, while noting the following:
-- If necessary, adapt the Auxiliary Battery -A1-. Refer to Auxiliary Battery -A1-, REMOVING AND INSTALLING, (VH0 + 0K4) .
