Overview - Backrest Cover And Cushion, Standard Seat/Sport Seat

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

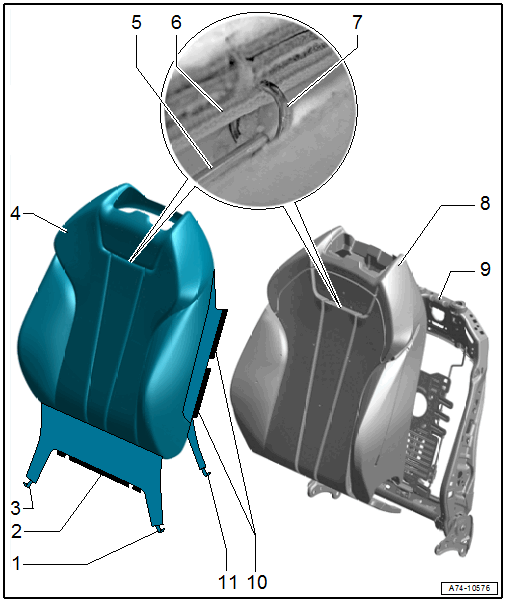

Fig 1: Exploded View Of Backrest Cover & Cushion, Standard Seat/Sport Seat

Courtesy of AUDI OF AMERICA, LLC

Hook
- Sewn into cover
- For attaching the cover to the backrest frame
Molding
- Sewn into cover
- For attaching the cover to the backrest frame
- Check for proper seating
Hook
- Sewn into cover
- For attaching the cover to the backrest frame
Cover
- Covers and Cushions, Removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Check that there are no folds after installing
Wire
- Encapsulated in cushion
- For securing the cover to the cushion
Contour Wire
- Pushed into the cover mounting pocket
- For securing the cover to the cushion
Upholstery Clip
- For securing the cover to the cushion
- Replace after removing.
- Install at the same location with Upholstery Clip Pliers :VAG1634 .
Cushion
- Covers and Cushions, Removing and installing. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
- Cover and Cushion, Separating. Refer to BACKREST COVER AND CUSHION, SEPARATING .
- Versions with seat heating: attach a new heating element when replacing. Refer to BACKREST HEATING ELEMENT, REMOVING AND INSTALLING .
Backrest Frame
Molding
- Sewn into cover
- For attaching the cover to the backrest frame
- Check for proper seating
Hook
- Sewn into cover
- For attaching the cover to the backrest frame
