Side Cushion Without Thorax Airbag, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

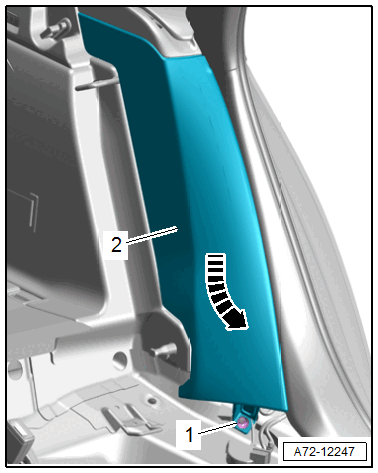

-- Remove the nut -1-.
-- Hold the seat belt webbing to the side and remove the side cushion -2- downward from the threaded pins.
-- Fold the rear seat backrest forward.
-- Pull the side cushion downward and remove it from the seat belt guide in direction of -arrow-.
