Overview - Rear Seat Backrest, Folding Backrest

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

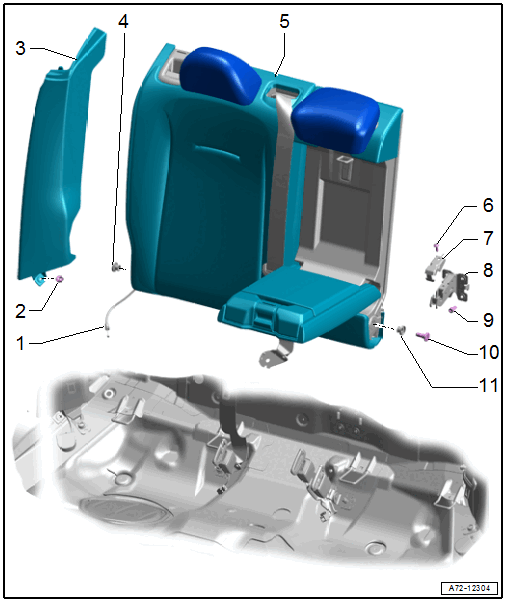

Fig 1: Exploded View Of Rear Seat Backrest, 3-Person Rear Seat

Courtesy of AUDI OF AMERICA, LLC

Release Cable
- For remote backrest release
Nut
- 9 Nm
Side Cushion
- Removing and installing. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
Outer Bearing Sleeve
- Place in the backrest frame and push until stop.
Right Folding Backrest with Center Folding Backrest
- Removing and installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, OUTER FOLDING BACKREST .
Bolt
- 8 Nm
Securing Bracket
- For the center bracket
- Removing and installing. Refer to CENTER BRACKET, REMOVING AND INSTALLING .
Center Support
- Removing and installing. Refer to CENTER BRACKET, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Quantity: 4
Mounting Pin
- 15 Nm
Inner Bearing Sleeve
