Overview - Rear Seat Backrest, Center Folding Backrest

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

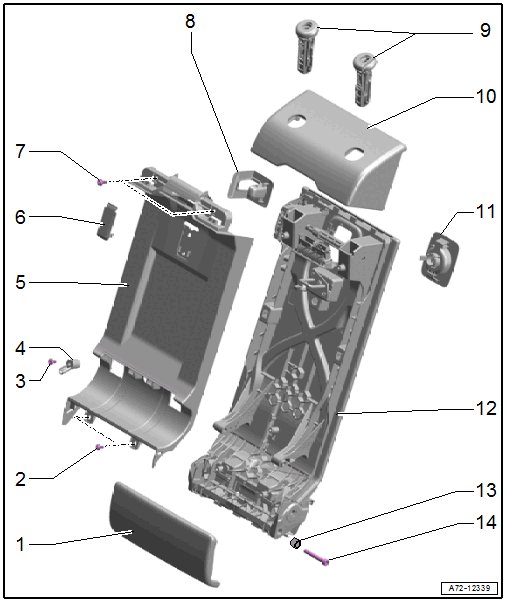

Fig 1: Exploded View Of Rear Seat Backrest, Center Folding Backrest

Courtesy of AUDI OF AMERICA, LLC

Center Cushion
- Remove downward
- Attach to the folding backrest and press on until it audibly engages
Bolt
- 4.5 Nm
- Quantity: 2
Bolt
- 4.5 Nm
- Quantity: 2
Stop
Center Folding Backrest Trim Panel
- Removing and installing. Refer to CENTER FOLDING BACKREST TRIM PANEL, REMOVING AND INSTALLING .
Trim
- For center armrest striker
Bolt
- 4.5 Nm
- Quantity: 2
Trim
- For the folding backrest latch
- Cannot be removed without being damaged
- Removing and installing. Refer to FOLDING BACKREST LATCH TRIM, REMOVING AND INSTALLING .
Headrest Guides
- Cannot be removed without being damaged
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, CENTER FOLDING BACKREST .
Cushion Cap
- Removing and installing. Refer to CENTER FOLDING BACKREST CUSHION COVER, REMOVING AND INSTALLING .
Twisting Lock
- For center folding backrest
- Remove to unclip the cushion cap -10-
Center Folding Backrest
- Removing and installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, CENTER FOLDING BACKREST .
Bearing Sleeve
- If installed
Bolt
- 20 Nm
