Rear Outer Seat Belt Guide, Removing And Installing, Sedan: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
-- Remove the rear shelf. Refer to REAR SHELF, REMOVING AND INSTALLING .
CAUTION:
Risk of malfunction.

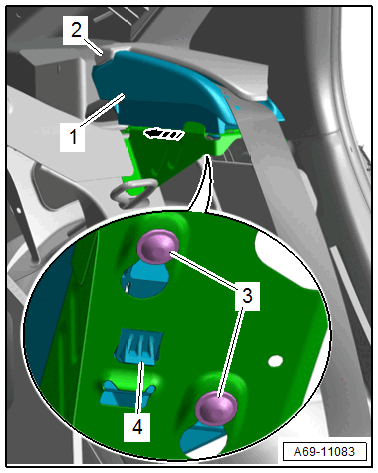

- Do not, under any circumstances, rotate the bolts -3- when removing and installing the seat belt guide -1-. They are set by the manufacturer.
- Replace the entire seat belt guide if damaged.
-- Push the seat belt guide retaining hook -4- upward and hold it there.
-- Lift the C-pillar trim panel -2- slightly and push the seat belt guide toward the rear -arrow- until the bolt heads -3- can be disengaged from the bracket on the body.
-- Remove the seat belt guide -1- sideways toward the vehicle interior.
-- Equipped on some models on the right side of the vehicle: disconnect the connector for the parking aid warning buzzer.
-- Thread the seat belt webbing out and remove the seat belt guide.
