Rear Outer Seat Belt Guide, Removing And Installing, AVANT: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Risk of malfunction.
- Do not, under any circumstances, rotate the bolts -3- when removing and installing the seat belt guide -1-. They are set by the manufacturer.
- Replace the entire seat belt guide if damaged.
-- Remove the side cushion. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, AVANT .

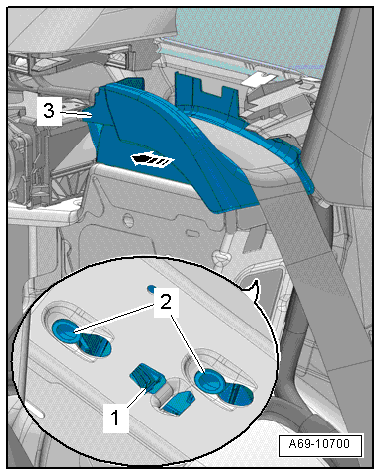

-- Push the seat belt guide retaining hook -1- upward and hold it there.
-- Slide the seat belt guide -arrow- toward the rear until the bolt heads -2- can be disengaged from the bracket on the body.
-- Remove the seat belt guide in direction of -3- sideways toward the vehicle interior.
-- Equipped on some models on the right side of the vehicle: disconnect the connector for the parking aid warning buzzer.
-- Thread the seat belt webbing out and remove the seat belt guide.
