Overview - Rear Seat Belt Latch

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

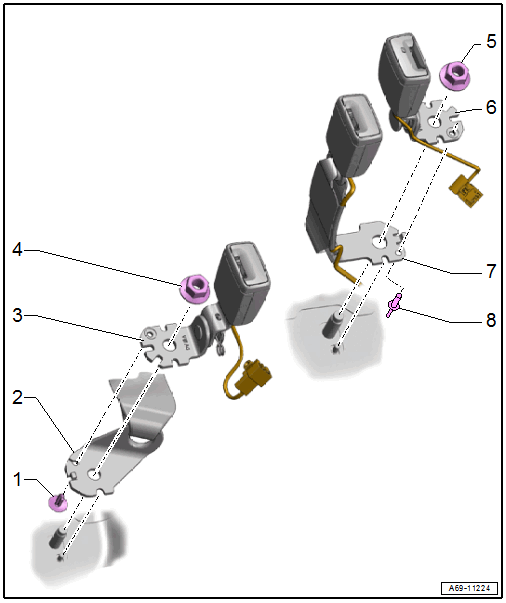

Fig 1: Exploded View Of Rear Seat Belt Latch
GWWA69-11224Courtesy of AUDI OF AMERICA, LLC
  1. Clip
  2. Center Rear Belt End Fitting
  3. Right Seat Belt Latch
    • Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
    • Always replace if the belt tensioner has deployed when the belt is buckled
    • Align with the direction of travel when bolting it on
    • The locating pin on the floor panel must be in the opening on the seat belt latch bolting surface
  4. Nut
    • 45 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  5. Nut
    • 45 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  6. Left Seat Belt Latch
    • Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
    • Always replace if the belt tensioner has deployed when the belt is buckled
    • Align with the direction of travel when bolting it on
    • The locating pin on the floor panel must be in the opening on the seat belt latch bolting surface
  7. Center Seat Belt Latch
    • Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
    • Always replace if the belt tensioner has deployed when the belt is buckled
    • Align with the direction of travel when bolting it on
    • The locating pin on the floor panel must be in the opening on the seat belt latch bolting surface
  8. Pop Rivet
