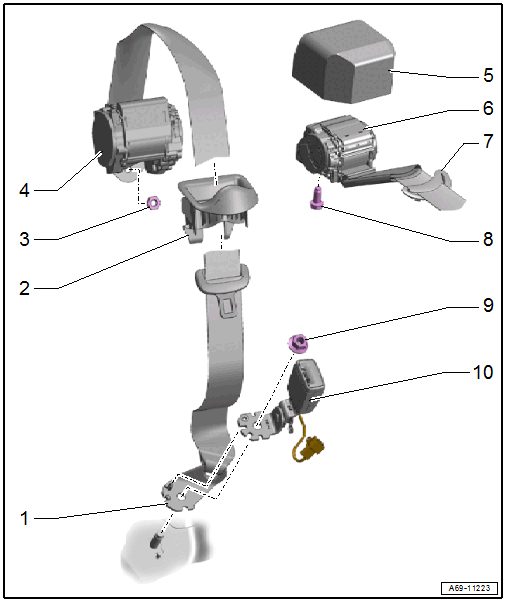

Overview - Rear Center Three-Point Seat Belt
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Center Rear Belt End Fitting
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
- Seat Belt Guide in Rear Seat Backrest
- Replace the entire seat belt guide if damaged
- Removing and installing. Refer to SEAT BELT GUIDE IN REAR SEAT BACKREST, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Nut
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Automatic Belt Retractor in Rear Seat Backrest
- Removing and installing. Refer to REAR THREE POINT SEAT BELT IN FOLDING BACKREST, REMOVING AND INSTALLING .
- Noise Insulation
- For the automatic belt retractor
- Automatic Belt Retractor in Rear Shelf
- Removing and installing. Refer to REAR THREE POINT SEAT BELT IN REAR SHELF, REMOVING AND INSTALLING .
- Seat Belt Guide in Rear Shelf
- Removing and installing. Refer to REAR SEAT BELT GUIDE IN REAR SHELF, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Bolt
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Nut
- Tightening specification -item ) OVERVIEW - REAR SEAT BELT LATCH - List Item: Nut
- Seat Belt Latch
- Removing and installing. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .
