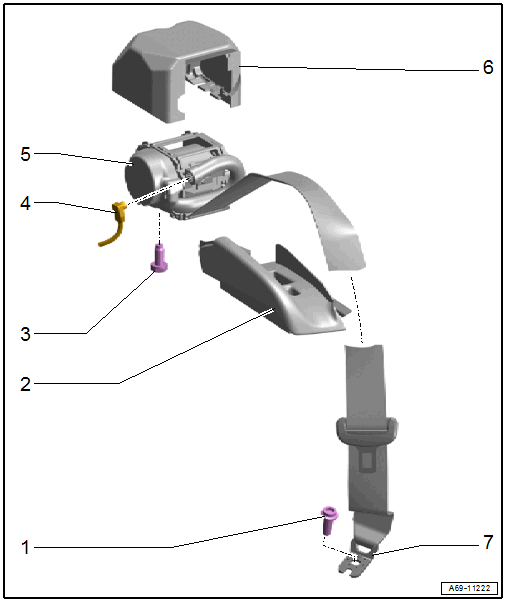

Overview - Outer Rear Three-Point Seat Belt
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Belt Guide
- Removing and installing. Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING .
- Insert in the guides on the bracket with the bolt heads and pull forward until the catches engage audibly
- Bolt
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Connector
- Automatic Belt Retractor
- Removing and installing. Refer to REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
- Noise Insulation
- For the automatic belt retractor
- Belt End Fitting
- Removing and installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
