Front Passenger Seat Occupant Detection Sensor, Removing And Installing, Standard Seat, China Version: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front passenger seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fasten the front seat on the : VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .
-- Remove the seat pan cover and cushion. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT, CHINA VERSION .

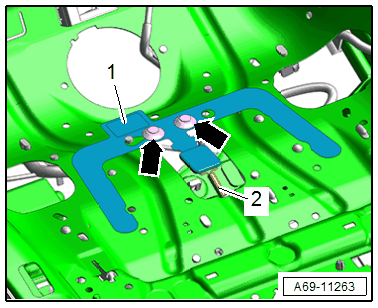

-- Disconnect the connector -2- for the passenger occupant detection sensor from the bottom of the seat pan.
-- Unclip the clips -arrows- from the seat pan and remove the passenger occupant detection sensor -1-.
