Screen Separator Mount, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Fold the outer folding backrest forward.

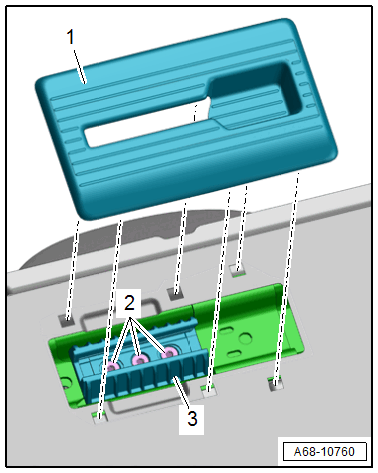

-- Unclip the trim -1- for the screen separator mount from the rear seat backrest using the :3409
.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the bolts -2-.
-- Remove the screen separator mount -3-.
