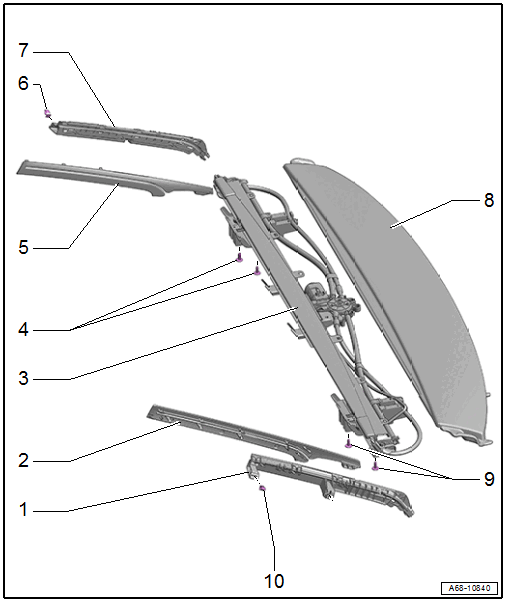

Overview - Sun Shade, Rear Window
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Sun Shade Guide Rail
- Removing and installing. Refer to SUN SHADE, REMOVING AND INSTALLING, REAR WINDOW .
- Mount it on the sun shade and press on it until it audibly latches into place
- Trim
- For the sun shade guide rail
- Removing and installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING, SEDAN .
- Engage into the guide rail and press on it until it engages
- Sun Shade
- Removing and installing. Refer to SUN SHADE, REMOVING AND INSTALLING, REAR WINDOW .
- Clip into the back part of the rear shelf
- Insert the sun shade with the rear shelf into the rear window frame and tighten the screws
- Bolts
- 2 Nm
- Trim
- For the sun shade guide rail
- Removing and installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING, SEDAN .
- Engage into the guide rail and press on it until it engages
- Clip
- Replace damaged or deformed clips
- Insert into the guide rail
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Quantity: 2
- Sun Shade Guide Rail
- Removing and installing. Refer to SUN SHADE, REMOVING AND INSTALLING, REAR WINDOW .
- Mount it on the sun shade and press on it until it audibly latches into place
- Rear Shelf, Rear
- Removing and installing. Refer to SUN SHADE, REMOVING AND INSTALLING, REAR WINDOW .
- Clip into the sun shade
- Insert the sun shade with the rear shelf into the rear window frame and tighten the screws
- Bolts
- 2 Nm
- Clip
- Replace damaged or deformed clips
- Insert into the guide rail
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Quantity: 2
