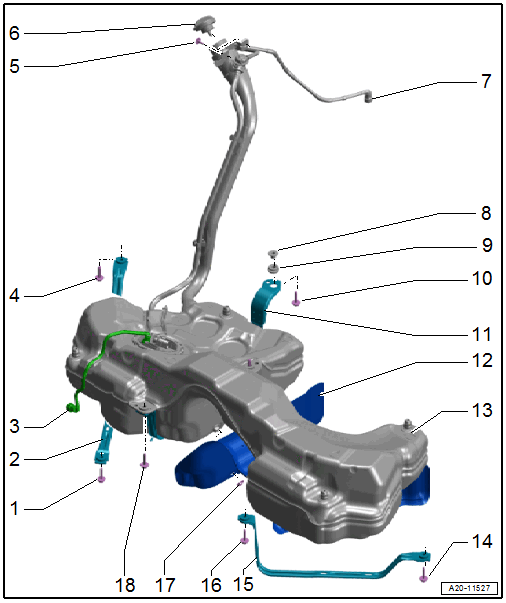

Overview - Fuel Tank, TFSI AWD Vehicles Rest Of World Market Version
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Secured with expanding clip on the expanding clip 20 Nm
- Mounting Strap
- Fuel Line
- To the engine
- Do not kink
- Clipped to the fuel tank
- Connector couplings, separating and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bolt
- 20 Nm
- Bolt
- Secures the fuel filler neck and works at the same time as the ground connection
- A4: quantity 2
- A5: quantity 3
- 8 Nm
- Secures the fuel filler neck and works at the same time as the ground connection
- Cap
- Attached to the fuel filler door unit with fastening device
- Turn until it clicks into place.
- Breather Line
- To the EVAP Canister
- Do not kink
- Connector couplings, separating and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bushing
- Rubber Bushing
- Bolt
- 20 Nm
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Heat Shield
- For the fuel tank
- Fuel Tank
- There are different versions. Refer to the Parts Information for the allocation.
- Removing and Installing. Refer to FUEL TANK, REMOVING, TFSI VEHICLES .
- Bolt
- 20 Nm
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Spring Nut
- 2 Nm
- For the heat shield
- Quantity: 5
- Bolt
- 20 Nm
