Overview - Fuel Tank, TDI Vehicles Rest Of World Market Version [XXXX]
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

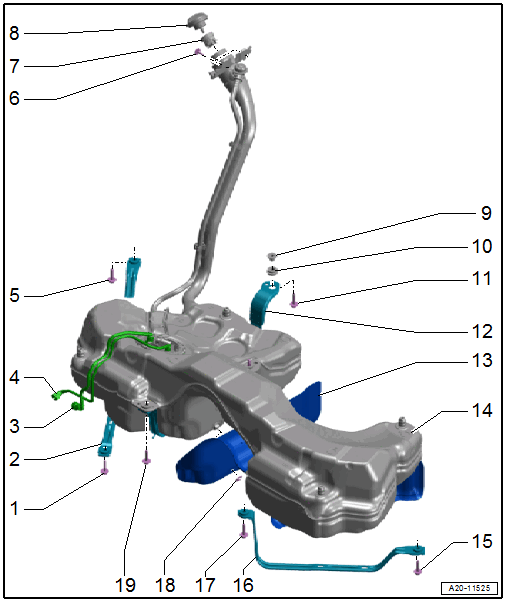

- Bolt
- 20 Nm
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Fuel Supply Line
- To the fuel filter
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Separating and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Return Line
- From the engine
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Separating and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bolt
- 20 Nm
- Bolt
- Secures the fuel filler neck and works at the same time as the ground connection
- A4: quantity 2
- A5: quantity 3
- 8 Nm
- Secures the fuel filler neck and works at the same time as the ground connection
- Misfueling Guard
- Removing and installing. Refer to MISFUELING GUARD, REMOVING AND INSTALLING .
- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastening device
- Bushing
- 1 each
- Rubber Bushing
- Bolt
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Fuel Tank
- There are different versions. Refer to the Parts Information for the allocation.
- Removing and Installing. Refer to FUEL TANK, REMOVING, TDI VEHICLES .
- Bolt
- 20 Nm
- Spring Nut
- 2 Nm
- For the heat shield
- Quantity: 3
- Heat Shield
- For the fuel tank

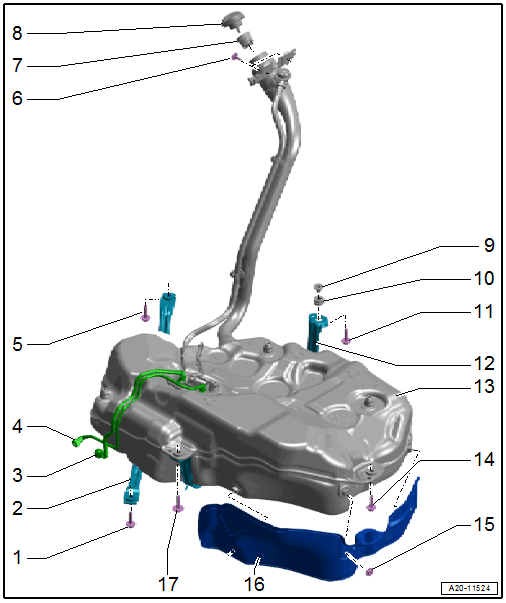

- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Fuel Supply Line
- To the fuel filter
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Separating and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Fuel Return Line
- From the engine
- Do not kink
- Clipped to the fuel tank
- Connector Couplings, Separating and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bolt
- 20 Nm
- Bolt
- 8 Nm
- Secures the fuel filler neck and works at the same time as the ground connection
- Quantity: 2
- Misfueling Guard
- Removing and installing. Refer to MISFUELING GUARD, REMOVING AND INSTALLING .
- Cap
- Turn until it clicks into place.
- Attached to the fuel filler door unit with fastening device
- Bushing
- 1 each
- Rubber Bushing
- 1 each
- Bolt
- 20 Nm
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Heat Shield
- For the fuel tank
- Fuel Tank
- There are different versions. Refer to the Parts Information for the allocation.
- Removing and Installing. Refer to FUEL TANK, REMOVING, TDI VEHICLES .
- Bolt
- 20 Nm
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Spring Nut
- 2 Nm
- For the heat shield
- Quantity: 5
- Bolt
- 20 Nm
