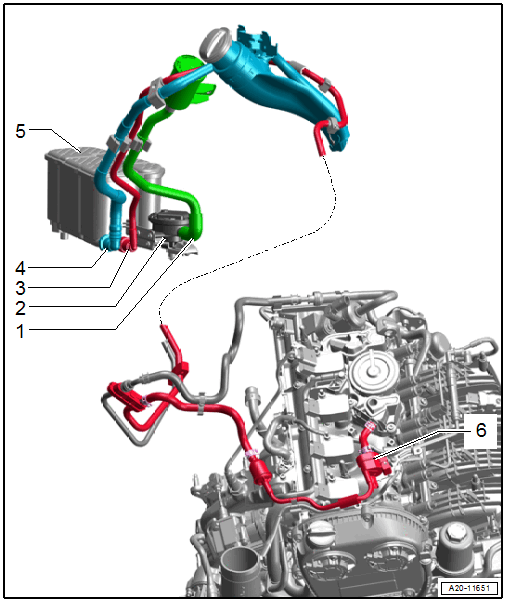

Connection Diagram - EVAP System
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The connection diagram applies to TFSI vehicles.
- Vent Line
- Vents out to the right rear under the wheel housing liner
- Fuel Tank Pressure Sensor -G400-
- Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Bleeder Line
- From the fuel tank
- EVAP Canister
- EVAP Canister Purge Regulator Valve 1 -N80-
