Component Location Overview - Telephone System
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

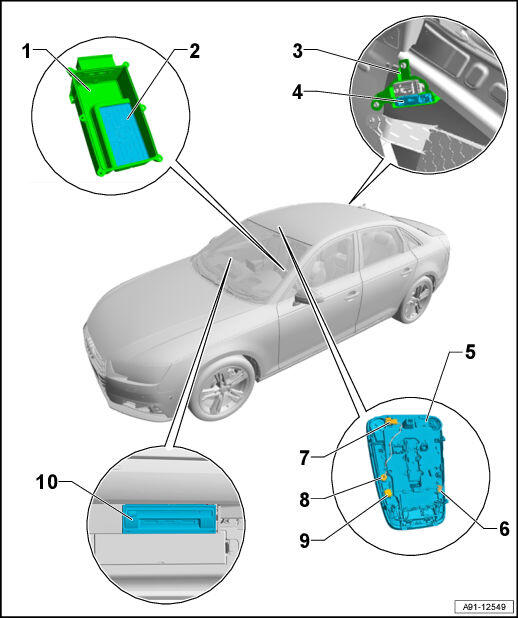

- Center Console Storage Compartment
- Removing and installing. Refer to OVERVIEW - CENTER CONSOLE .
- Telephone Baseplate -R126-
- Removing and Installing. Refer to Telephone Baseplate -R126-, REMOVING AND INSTALLING .
- Bracket
- Nut tightening specification: 3 Nm
- Cellular Telephone Amplifier -R86-
- Behind the luggage compartment right side trim
- the appropriate Wiring Diagram
- Removing and Installing. Refer to Cellular Telephone Amplifier -R86-, REMOVING AND INSTALLING .
- Front Interior Lamp -W1-
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Right Front Microphone -R141-
- 4-Pin Connector -T4-, black
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- 4-Pin Connector -T4dc-, Black
- Interior Microphone -R74-
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Left Front Microphone -R140-
- 4-Pin Connector -T4-, red
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- the appropriate Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
