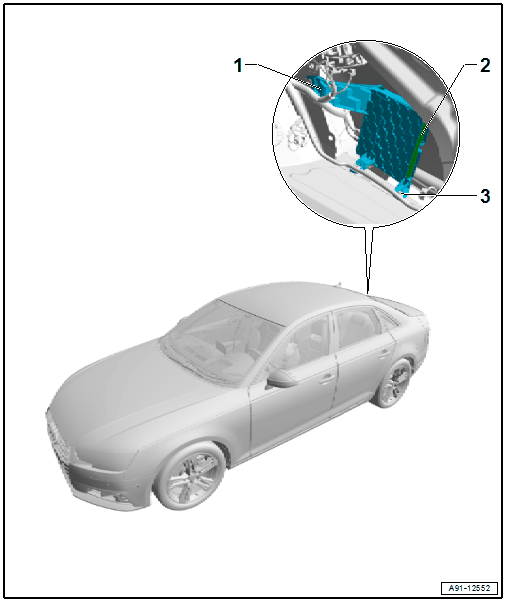

Component Location Overview - TV System
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- TV Tuner -R78-
- Behind the luggage compartment right side trim
- the appropriate Wiring Diagram
- Removing and Installing. Refer to TV TUNER, REMOVING AND INSTALLING .
- Nut
- Quantity: 3
- 3 Nm
