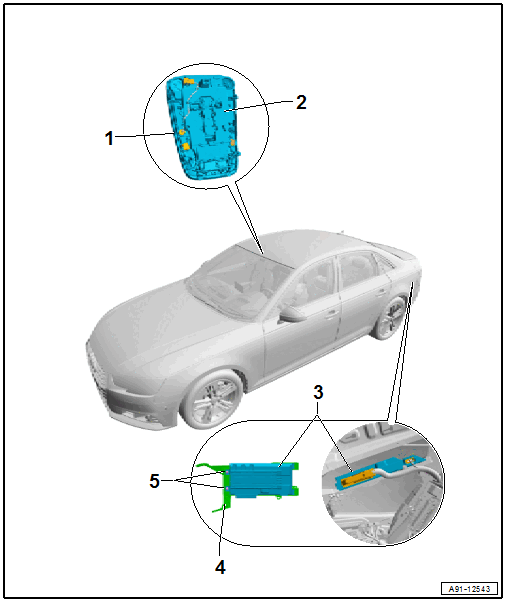

Component Location Overview - Sound System, Microphones And Amplifiers
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Interior Microphone -R74-, 9VS
- In the Front Roof Module -WX3-
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Front Interior Lamp -W1-
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- With Microphone Unit in Front Roof Module -R164-
- Removing and Installing. Refer to Microphone Unit in Front Roof Module -R164-, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-, 9VS
- In the luggage compartment on the left rear side
- the appropriate Wiring Diagram
- Removing and Installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
- Bracket
- Nut, quantity 3
- 3 Nm
- Bolt
- Quantity: 2
- 6 Nm
