Component Location Overview - Rearview Camera System
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

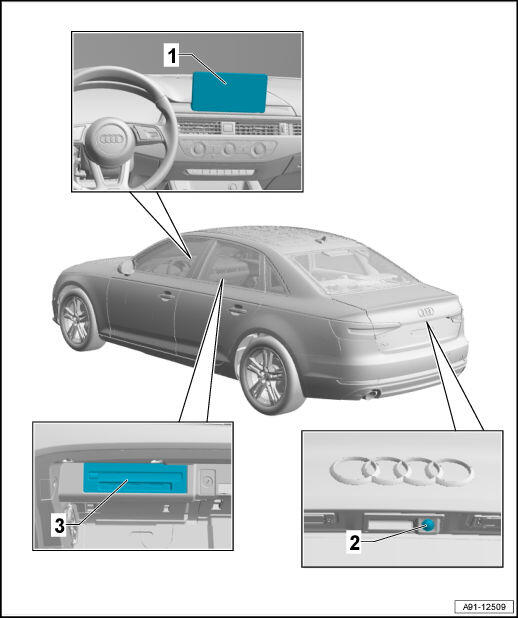

- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- the appropriate Wiring Diagram
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Rearview Camera -R189-
- With Rearview Camera System Control Module -J772-
- the appropriate Wiring Diagram
- Removing and Installing. Refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- the appropriate Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
