Rear Peripheral Camera -R246-, REMOVING AND INSTALLING, AVANT: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

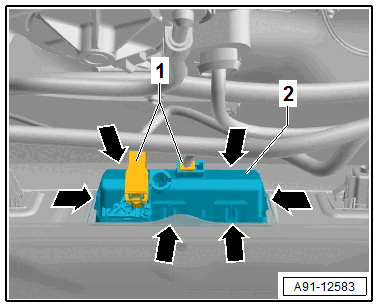

-- Release and disconnect the connectors -1-.
-- Release the retainers -arrows-.
-- Remove the handle button -2- from the rear lid.
