Component Location Overview - Peripheral Camera
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

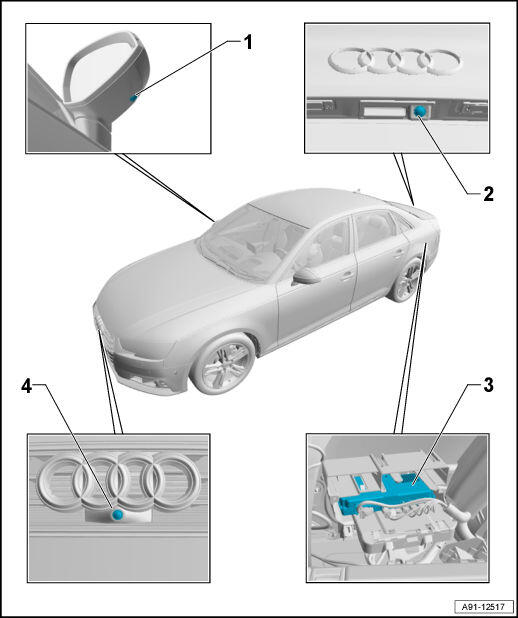

- Right Peripheral Camera -R245- /Left Peripheral Camera -R244-
- Bracket screws: 2 Nm
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Removing and Installing. Refer to Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING .
- Rear Peripheral Camera -R246-
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Removing and Installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Peripheral Camera Control Module -J928-
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Behind the left luggage compartment side trim panel
- the appropriate Wiring Diagram
- Removing and Installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
- Front Peripheral Camera -R243-
- Bolts: 3 Nm
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Removing and Installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
