Component Location Overview - Infotainment System
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

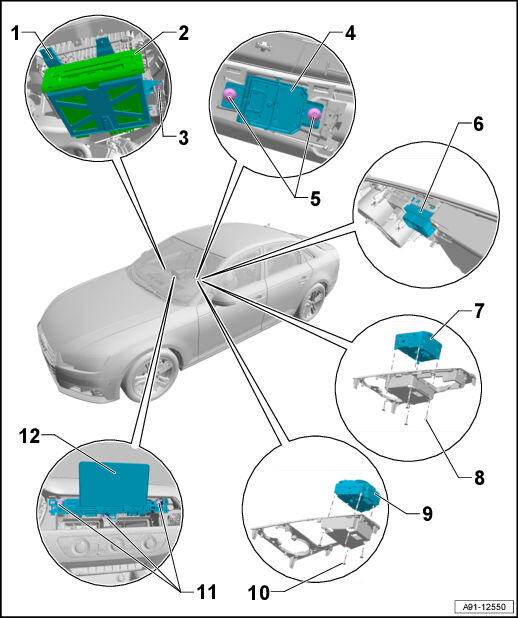

- Bracket
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- the appropriate Wiring Diagram
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 3 Nm
- Driver Volume Control -E67-
- In the center console
- Removing and Installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 2 Nm
- Multimedia Button Module -E817-
- In the center console
- Removing and Installing. Refer to Multimedia Button Module -E817-, REMOVING AND INSTALLING .
- Multimedia System Control Head -E380-
- In the center console
- for automatic transmission
- Removing and Installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, AUTOMATIC TRANSMISSION .
- Bolt
- Quantity: 4
- 2 Nm
- Multimedia System Control Head -E380-
- In the center console
- for manual transmission
- Removing and Installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, MANUAL TRANSMISSION .
- Bolt
- Quantity: 4
- 2 Nm
- Bolt
- Quantity: 3
- 3 Nm
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- the appropriate Wiring Diagram
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
