Windshield Washer Pump, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

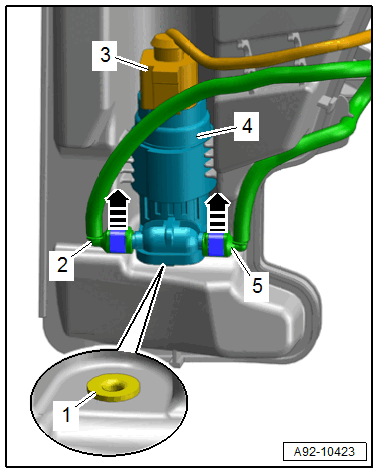

-- Remove the washer fluid reservoir until the windshield washer pump is accessible. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
-- Disconnect the connector -3-.
-- Open the clips in the direction of -arrows- and remove the washer fluid hoses -2 and 5- from the windshield washer pump -4-.
-- Remove the windshield washer pump upward from the washer fluid reservoir.
