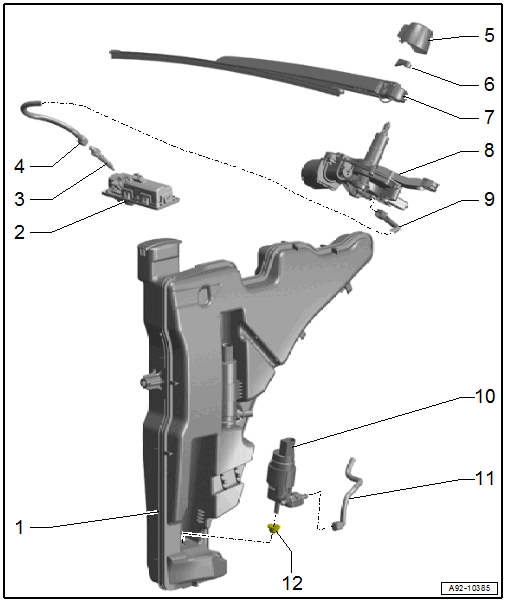

Overview - Rear Window Washer System
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Handle Button
- Washer Nozzle
- Equipped on some models
- Removing and installing. Refer to WASHER NOZZLE, REMOVING AND INSTALLING, HANDLE BUTTON WITH REARVIEW CAMERA .
- Washer Fluid Hose
- Equipped on some models
- From the window washer pump
- Rear Window Wiper Cap
- Washer Nozzle
- Removing and installing. Refer to WASHER NOZZLE, REMOVING AND INSTALLING, WIPER ARM .
- Adjusting. Refer to WASHER NOZZLE, ADJUSTING .
- Windshield Wiper Arm
- Rear Window Wiper Motor -V12-
- Washer Fluid Hose
- From the window washer pump
- Windshield Washer Pump -V5-
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Washer Fluid Hose
- To the washer nozzle
- Grommet
- Replace if damaged
