Washer Nozzles, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air intake grille. Refer to Front Bumper .
-- RS4: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Place the drip tray under the washer nozzle.

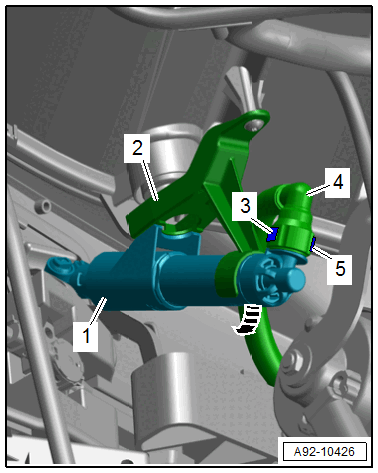

Version 1:
-- Tilt the washer nozzle -1- out of the mount on the bracket -2- in direction of -arrow- and remove.
-- Remove the washer fluid hose -4- by pressing the release buttons -3 and 5-.
-- Seal the hose coupling with clean plugs from the :VAS6122 .

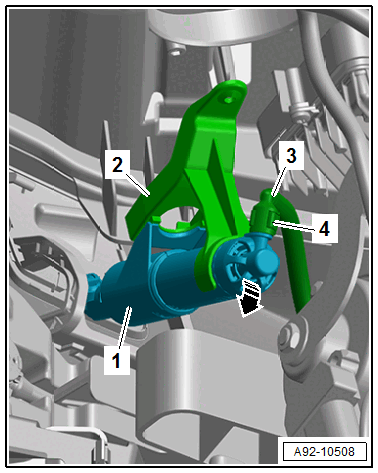

Version 2:
-- Tilt the washer nozzle -1- out of the mount on the bracket -2- in direction of -arrow- and remove.
-- Remove the coolant hose -1- to do so release the clip -4-.
-- Seal the hose coupling with clean plugs from the :VAS6122 .
