Washer Nozzles, Removing And Installing: Installing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:

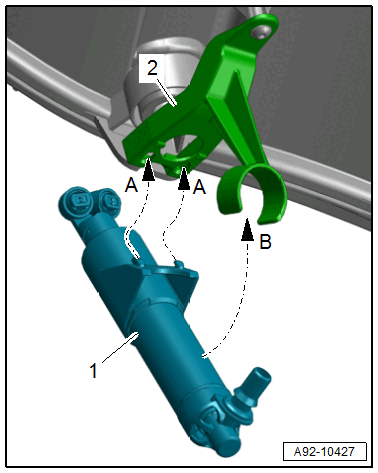

-- Guide the retaining pin into the mounts on the bracket -2- in direction of -arrows A -, then press the washer nozzle -1- into the mount on the bracket in direction of -arrow B-.
 Courtesy of AUDI OF AMERICA, LLC
|
