Speaker Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Fold the foldable rear seat backrest forward.

CAUTION:

There is a risk of damaging the speaker trim.

Proceed very carefully when removing and installing.

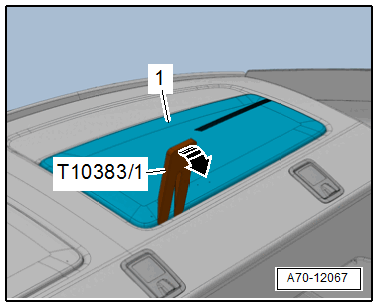

-- Carefully unclip the speaker trim -1- from the rear shelf in direction of -arrow- along the seam using the :T10383/1

-- Disengage the remaining tabs for the speaker trim along the seam.

-- Vehicles equipped with a speaker: disconnect the connector and remove the speaker trim forward.
