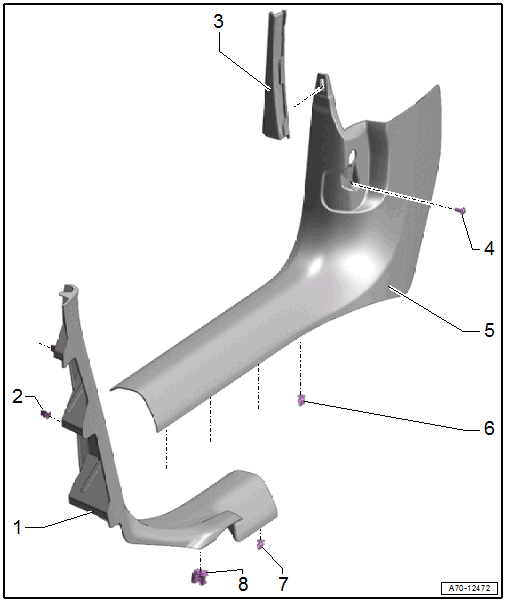

Overview - Sill Panel
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Rear Sill Panel
- Removing and installing. Refer to REAR SILL PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Stretch the door seal lip over
- Clip
- Replace damaged or deformed clips
- Insert in the sill panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the sill panel strip.
- Quantity: 2
- A-Pillar Gap Cover
- Removing and installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Clip into the A-pillar upper trim panel and the sill panel
- Stretch the door seal lip over
- Bolt
- 2.5 Nm
- Only driver side
- Front Sill Panel
- Removing and installing. Refer to FRONT SILL PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Stretch the door seal lip over
- Clip
- Replace damaged or deformed clips
- Insert in the sill panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the sill panel.
- Quantity: 4
- Clip
- Replace damaged or deformed clips
- Insert in the sill panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the sill panel.
- Clip
- Insert in the sill panel
