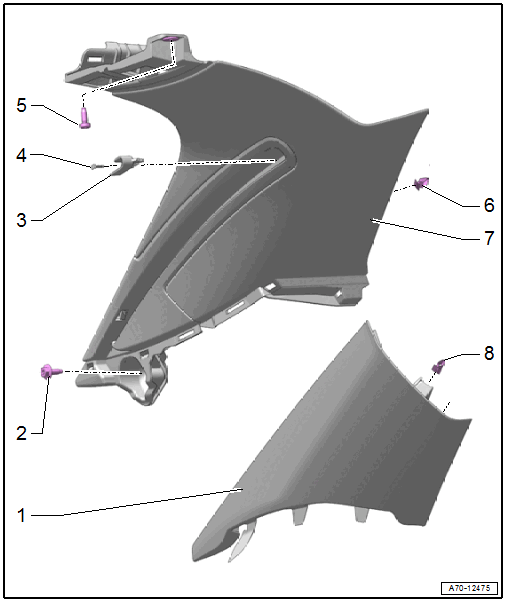

Overview - D-Pillar Trim Panel
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- D-Pillar Trim Panel, Sedan
- Removing and installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING, SEDAN .
- Engage in the rear shelf and press it onto the D-pillar until it engages audibly
- Bolt
- 2.5 Nm
- Roll Cover Catch
- Clipped into the guide rails
- Removing and installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING, AVANT .
- Expanding Pin
- Insert into the catch and push on it
- Bolt
- 6 Nm
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- D-Pillar Trim Panel, Avant
- Removing and installing. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING, AVANT .
- Press on until it engages audibly
- Stretch the lip of the rear lid seal over
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove any remaining clips in the body mounting points using the Omega Clip Tool:T40280 . To install, insert into the trim panel.
- Quantity: 2
