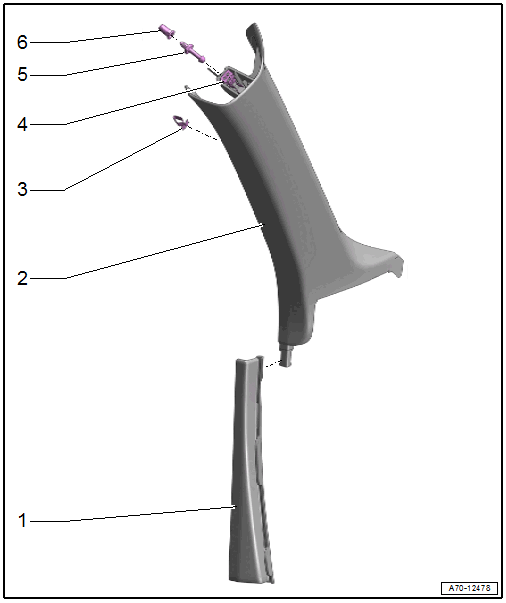

Overview - A-Pillar Trim Panel
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- A-Pillar Gap Cover
- Removing and installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Clip into the A-pillar upper trim panel and the sill panel
- Stretch the door seal lip over
- A-Pillar Trim Panel
- Removing and installing. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Stretch the door seal lip over
- Clip
- Replace damaged or deformed clips
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool:T40280 .
- Clip
- With hooks
- Replace after removing the A-pillar trim panel
- Insert in the trim panel
- Retaining Pin
- 3.5 Nm
- Pop Rivet Nut
- Riveted into the A-pillar
