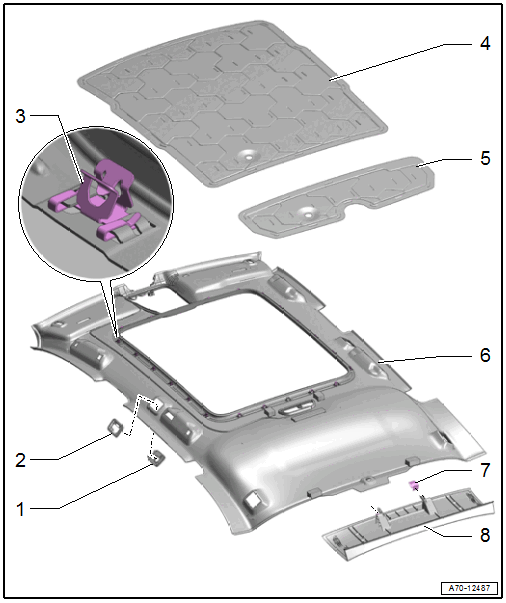

Overview - Headliner, AVANT
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Trim
- For the screen separator mounting eye
- Clipped to the bracket in the headliner
- Quantity: 4
- Bracket
- For the mounting eye trim
- Clipped into the headliner with the trim
- Quantity: 4
- Clip
- Replace damaged or deformed clips
- For vehicles with sliding sunroof
- Quantity 21
- Insert in the headliner
- Front Roof Reinforcement
- For vehicles without a sliding sunroof
- Install on the body. Refer to ROOF REINFORCEMENT, ATTACHING TO BODY, AVANT .
- Rear Roof Reinforcement
- For vehicles with sliding sunroof
- Install on the body. Refer to ROOF REINFORCEMENT, ATTACHING TO BODY, AVANT .
- Headliner with Deformation Elements
- Apply the detached deformation element with two-sided adhesive tape at the old position
- Removing and Installing. Refer to HEADLINER, REMOVING AND INSTALLING, AVANT .
- Clip
- Replace damaged or deformed clips
- Insert in the roof end strip
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool:T40280 .
- Quantity: 2
- Roof End Strip
- Insert in the D-pillar trim panels and press on it until it audibly engages.
- Stretch the lip of the rear lid seal over
- Removing and installing. Refer to ROOF END STRIP, REMOVING AND INSTALLING .
