Tie Down Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the tie-downs. Refer to TIE DOWN, REMOVING AND INSTALLING .

-- Equipped on some models: remove the rail. Refer to RAIL, REMOVING AND INSTALLING .

-- Equipped on some models: remove the luggage compartment floor carrier. Refer to LUGGAGE COMPARTMENT SUPPORT, REMOVING AND INSTALLING .

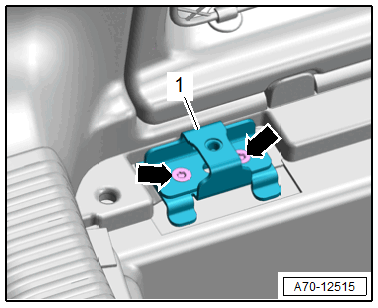

Rear Bracket:

-- Remove the bolts -arrows- and the rear bracket -1- .

-- g-tron: remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, AVANT .

-- Remove the nuts -2- and bolts -3- , and remove the bracket -1- .

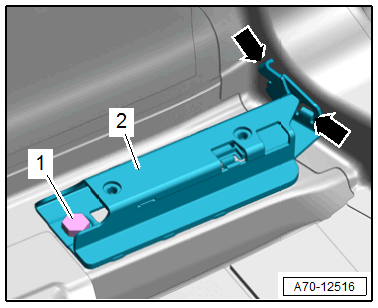

Front Bracket:

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, AVANT .

-- If installed, remove the cover strip.

-- Remove the bolt -1- .

-- Disengage and remove the front bracket -2- from the mounts -arrows- .
