Rear Panel Sill Frame, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Unclip the luggage compartment floor -1- from the front brackets -arrows- and remove.
-- Remove the luggage compartment side trim panels. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, SEDAN .

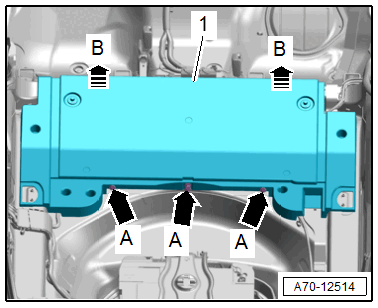

-- Remove the expanding clips in direction of -A arrows- using the :T40172C .
-- Unclip the front of the rear panel sill frame -1- upward in direction of -B arrows- and remove it.
