Luggage Compartment Support, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear luggage compartment floor.
-- Remove the tie-downs. Refer to TIE DOWN, REMOVING AND INSTALLING .
-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

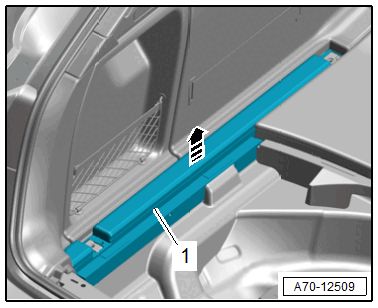

-- Remove the luggage compartment floor support -1- upward in direction of -arrow- .
