LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G385-, REMOVING AND INSTALLING, "Low" A/C SYSTEM (OR WITHOUT A/C SYSTEM): Notes

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

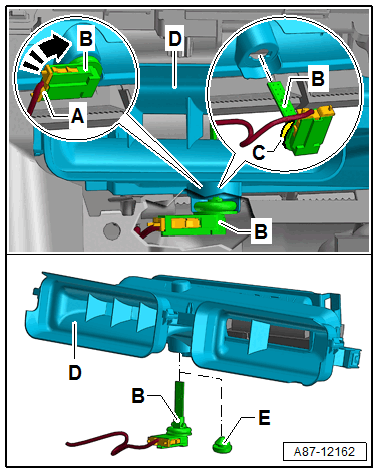

The Left Front Upper Body Vent Temperature Sensor -G385- -B- is only installed on a vehicle with a "Low" A/C system (or without an A/C system only with a heater) in the air duct to the center instrument panel vents -D-. Refer to the appropriate Wiring Diagram.

Courtesy of AUDI OF AMERICA, LLC
The Left Front Upper Body Vent Temperature Sensor -G385- is installed on a vehicle with a "High" A/C system in the air duct to the left instrument panel vent. Refer to Left Front Upper Body Vent Temperature Sensor -G385-, REMOVING AND INSTALLING, "High" A/C SYSTEM .
On a vehicle with a "High" A/C system the opening in the air duct -D- for the Left Front Upper Body Vent Temperature Sensor -G385- -B- is not present or closed with a plug -E-. Refer to the Parts Information.
