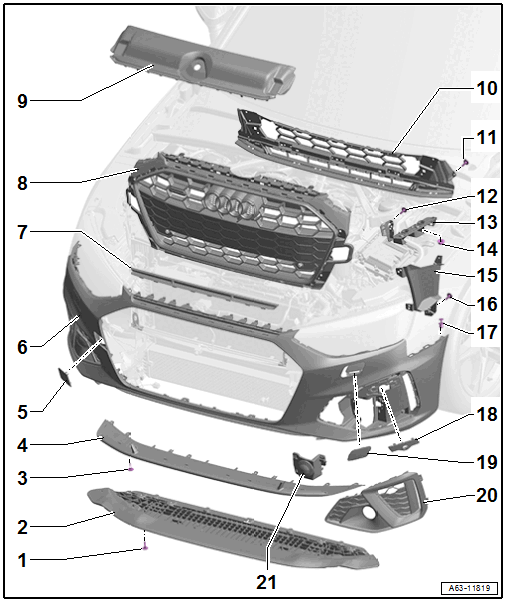

Overview - Bumper Cover, A4 S Line From Product Improvement
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Tightening specification OVERVIEW - COVERS AND AIR GUIDES
- End Panel
- The bumper cover
- Overview. Refer to OVERVIEW - COVERS AND AIR GUIDES .
- Bolt
- Tightening specification OVERVIEW - COVERS AND AIR GUIDES
- Spoiler Lower Section
- Removing and Installing. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, A4 S LINE/A5 S LINE FROM PRODUCT IMPROVEMENT .
- Towing Eye Cover
- Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Adjusting. Refer to BUMPER COVER, ADJUSTING .
- Grille Trim
- Removing and Installing. Refer to GRILL TRIM, REMOVING AND INSTALLING, A4, A5 FROM PRODUCT IMPROVEMENT .
- Radiator Grille
- Overview. Refer to OVERVIEW - RADIATOR GRILLE .
- Lock Carrier Cover
- Overview. Refer to OVERVIEW - COVERS AND AIR GUIDES .
- Air Intake Grille
- Center
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A4 BEFORE PRODUCT IMPROVEMENT .
- Bolt
- 2 Nm
- Quantity: 9
- Bolt
- 4 Nm
- Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Nut
- 4 Nm
- Quantity: 2
- Air Duct
- Side
- Removing and Installing. Refer to AIR ROUTING, REMOVING AND INSTALLING, A4 .
- Bolt
- 2 Nm
- Quantity: 4
- Expanding Rivet
- Mount
- For the parking aid sensor
- Removing and Installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
- Air Intake Grille
- Side
- Overview. Refer to OVERVIEW - COVERS AND AIR GUIDES .
- Trim
- Only for equipment versions without Control Module for Adaptive Cruise Control -J428-
- Clipped in the bumper cover.
