Overview - Bumper Cover, A4 Before Product Improvement Through My 2018

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

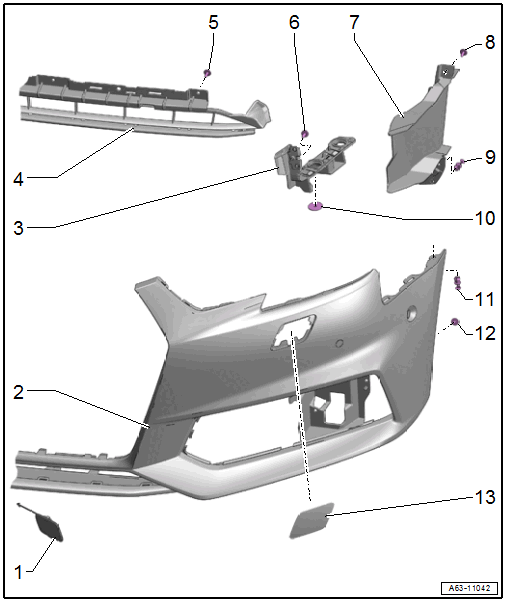

Fig 1: Exploded View Of Bumper Cover With Components

Courtesy of AUDI OF AMERICA, LLC

Towing Eye Cover
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Adjusting. Refer to BUMPER COVER, ADJUSTING .
- Overview - Rear Reflector. Refer to OVERVIEW - REAR REFLECTOR
- Overview - Covers and Air Guides. Refer to OVERVIEW - COVERS AND AIR GUIDES
Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Air Intake Grille
- Center
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A4 BEFORE PRODUCT IMPROVEMENT THROUGH MY 2019 .
Bolt
- 2 Nm
- Quantity: 4
Bolt
- 4 Nm
Air Duct
- Side
- Removing and Installing. Refer to AIR ROUTING, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 3
- A4 Sedan, A4 Avant S line: Quantity: 2
Expanding Rivet
- A4 Sedan, A4 Avant: only S line
Nut
- 4 Nm
- Quantity: 2
Expanding Rivet
Bolt
- Tightening specification OVERVIEW - FRONT WHEEL HOUSING LINER
Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
