Grill Trim, Removing And Installing, RS 4 From Product Improvement: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the locking plate for the radiator grille. Refer to BACKING PLATE, REMOVING AND INSTALLING, A4 AND A5 FROM PRODUCT IMPROVEMENT .
-- Remove the catches -2- using the long reach special wrench and remove the grill trim -arrow- upward from the bumper cover -1-.

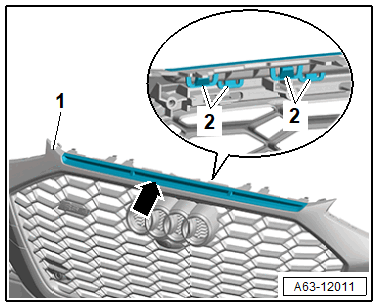

-- Remove the locking plate for the radiator grille. Refer to BACKING PLATE, REMOVING AND INSTALLING, A4 AND A5 FROM PRODUCT IMPROVEMENT .
-- Release the catches -2- and remove the grill trims -arrows- forward from the bumper cover -1-.
