Grill Trim, Removing And Installing, A4, A5 From Product Improvement: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the radiator grille. Refer to RADIATOR GRILLE, REMOVING AND INSTALLING, A4 FROM PRODUCT IMPROVEMENT .

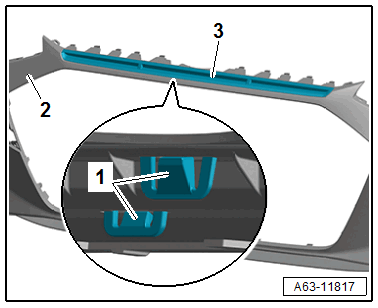

-- Release the retainers -1- and remove the grill trim -3- forward from the bumper cover -2-.
