Overview - Rear Axle
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

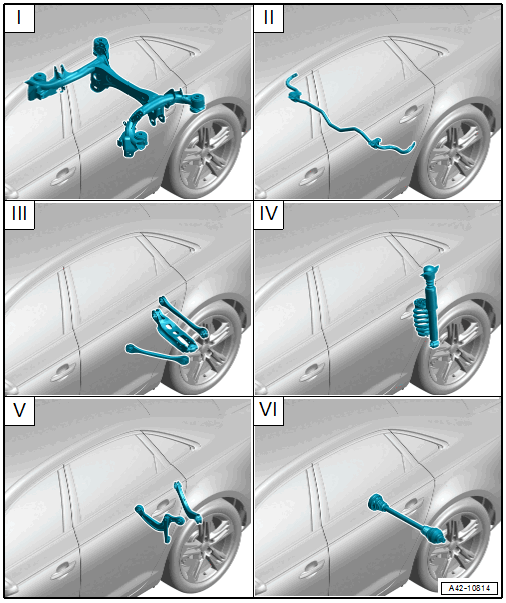

I - Refer to SUBFRAME
II - Refer to STABILIZER BAR
III - Refer to CONTROL ARM, TIE ROD
IV - Refer to SUSPENSION STRUT, SHOCK ABSORBER, SPRING
V - Refer to WHEEL BEARING AND TRAILING ARM
VI - Refer to DRIVE AXLE
