Rear Brake Pad Wear Indicator Sensor, Removing And Installing: Installing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Check the brake pad wear indicator sensor contact for damage and replace if necessary.
Make sure that the brake pad wear indicator sensor contact fits correctly in the brake pad.
If the clips go missing, the brake pad wear indicator sensor wire must be replaced.

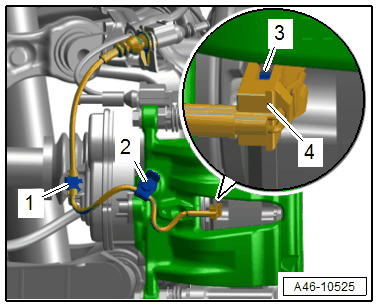

-- Insert the contact -4- for the brake pad wear indicator sensor with the clip -3- until it engages in the inner brake pad.
-- Secure the brake pad wear indicator sensor wire with the dust protective cap -2- and the clip -1-, as shown.
-- Bring the connector -1- into its installation position and turn in the direction of -arrow- until the tab -3- engages in the hole -4- on the bracket.
-- Connect the connector -2-.
