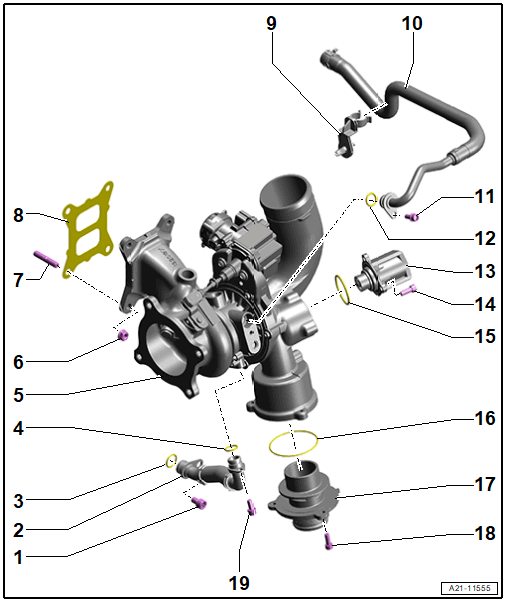

Fig 1: Exploded View Of Turbocharger

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 25 Nm
Oil Return Line
O-Ring
- Always replace after removing.
- Coat with engine oil
O-Ring
- Always replace after removing.
- Coat with engine oil
Turbocharger
- Removing and installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
Nut
- Replace after removing
- Coat the stud bolts with hot bolt paste. Refer to the appropriate Electronic Parts Information.
- Tightening specification and sequence. Refer to 2
Threaded Pin
- 16 N.m
Seal
- Replace after removing.
Bracket
Coolant Return Line
Bolt
- 9 Nm
O-Ring
- Always replace after removing.
- Coat with coolant
Turbocharger Recirculation Valve -N249-
- Removing and Installing. Refer to Turbocharger Recirculating Valve -N249-, REMOVING AND INSTALLING
- Installation position. Refer to Fig 2.
Bolt
- 9 Nm
O-Ring
- Always replace after removing.
O-Ring
- Always replace after removing.
Connection
Bolt
- 9 N.m
Bolt
- 9 Nm

Turbocharger Recirculation Valve N249 Installation Position

Fig 2: Identifying Installation Position Of Turbocharger Recirculating Valve

Courtesy of AUDI OF AMERICA, LLC

-- Note the installation location -arrows-.

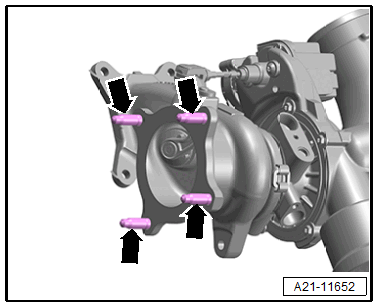

Turbocharger/catalytic converter threaded pin connection - tightening specifications
-- Tighten the threaded pins -arrows- to 24 N.m.

Courtesy of AUDI OF AMERICA, LLC

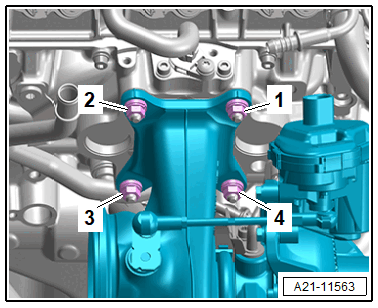

Turbocharger - tightening specifications and sequence

Courtesy of AUDI OF AMERICA, LLC

Replace the nuts after removing.

-- Tighten the nuts in stages in the sequence shown

Step	Nuts	Tightening Specifications
1.	-1 to 4-	Install all the way by hand
2.	-1 and 2-	10 N.m
3.	-3 and 4-	25 N.m
4.	-1 and 2-	25 N.m
