Valve Stem Seals, Removing And Installing, Cylinder Head Installed

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2019 Audi A4 allroad, 2019 Audi A4 Quattro, and 2018 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Spark Plug Removal Tool: 3122B
Puller - Valve Seal: 3364
Seal Installer - Valve Stem: 3365 for valve stem seal with a simple sealing lip. Refer to Figure.
Seal Installer - Valve Stem: T40376/1 , for valve stem seal with a double sealing lip. Refer to Figure.
Valve Cotter Tool Kit - Adapter: T40012
Valve Keeper Tool Kit: VAS5161A
: VAS5161/2
: VAS5161A/3A
: VAS5161/5
: VAS5161/6
: VAS5161/8A
: VAS5161A/12
: VAS5161/19C
Mounting Sleeve. Refer to Parts Information

Procedure

-- Remove the camshafts. Refer to CAMSHAFT, REMOVING AND INSTALLING .

-- Mark the allocation of the roller rocker lever and the hydraulic lifter so they can be installed again.

-- Remove the roller rocker lever with the hydraulic lifter and place them on a clean surface.

-- Remove the spark plugs using the : 3122B .

Courtesy of AUDI OF AMERICA, LLC

Guide Plate, Reworking:

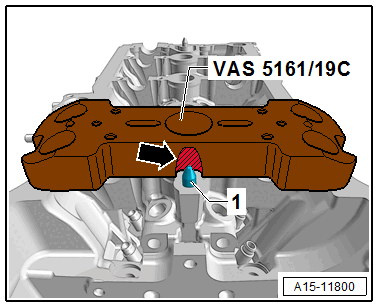

Fig 1: Identifying Valve Cotter Tool Kit - Guide Plate 19c VAS5161/19C

Courtesy of AUDI OF AMERICA, LLC

-- Check if the opening -arrow- is present.

-- If necessary, rework the : VAS5161/19C -arrow- until the guide plate touches the cylinder head and the guide pin -1- is free.

Continuation:

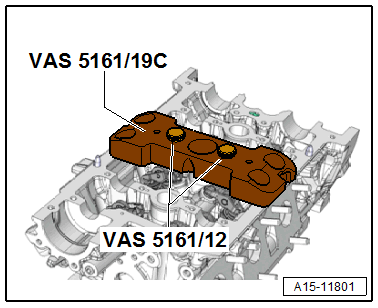

Fig 2: Identifying Valve Cotter Tool Kit - Guide Plate 19c VAS5161/19C

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the : VAS5161/19C on the cylinder head as shown using the : VAS5161A/12 .

-- Set the piston for the respective cylinder to "bottom dead center (BDC)".

-- Install the : T40012 in the spark plug threads.

Fig 3: Identifying Drift VAS 5161/3 And Plastic Mallet To Loosen Stuck Valve Keepers

Courtesy of AUDI OF AMERICA, LLC

-- Connect compressed air with at least 6.0 bar (87.02 psi) pressure.

-- Loosen stuck valve retainers using a : VAS5161A/3A and a plastic hammer.

Intake Side:

Fig 4: Identifying Engaging Device VAS 5161/6 With Installation Forks VAS 5161/5 Installed Into Guide Plate VAS 5161/19

Courtesy of AUDI OF AMERICA, LLC

-- Install the : VAS5161/6 with the : VAS5161/5 in the center threads of the : VAS5161A/19C .

Exhaust Side:

Fig 5: Identifying Pressure Fork VAS 5161/2

Courtesy of AUDI OF AMERICA, LLC

-- Install the : VAS5161/6 with the : VAS5161/5 in the outer threads of the : VAS5161A/19C .

Continuation:

-- Insert the : VAS5161/8A into the : VAS5161/19C .

-- Engage the : VAS5161/2 on the : VAS5161/6 .

-- Press down the : VAS5161/8A and at the same time turn the knurled thumb screw on the : VAS5161/8A to the right until the points engage in the valve retainers.

-- Move the knurled thumb screw back and forth slightly. This presses the valve retainers apart and captures them in the installation cartridge.

-- Release the : VAS5161/2 .

-- Remove the : VAS5161/8A .

-- Remove the valve stem seals using : 3364 .

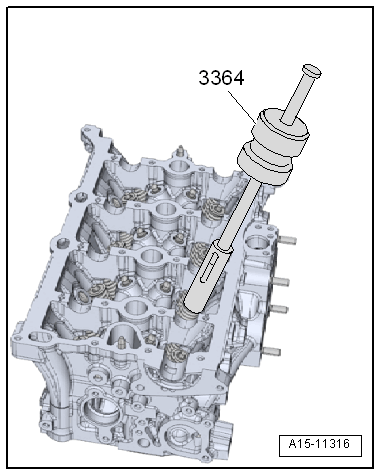

Fig 6: Identifying Valve Seal Removal Tool 3364

Courtesy of AUDI OF AMERICA, LLC

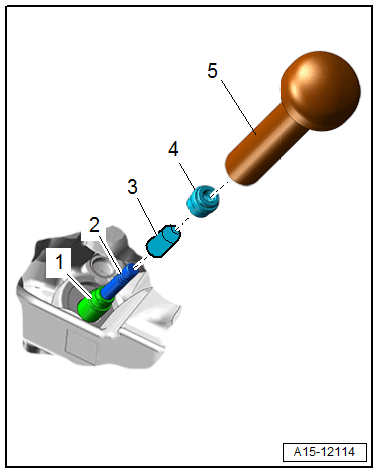

In order not to damage the valve stem seal -4- during installation, mount the mounting sleeve -3- on the valve stem -2-.

Fig 7: Insert The Valve Stem Seal In The 3365
Courtesy of AUDI OF AMERICA, LLC

-- Lightly oil the valve stem seal sealing lip.

Depending on the version/manufacturer of the valve stem seal, use the : 3365 or : T40376/1

-- Insert the valve stem seal in the Seal Installer - Valve Stem -5- and carefully press on over the Mounting Sleeve on the valve guide -1- all the way.

-- Remove the Mounting Sleeve.

-- Insert the valve spring and valve spring retainer.

-- Connect the : VAS5161A as illustrated.

Intake Side:

Fig 8: Identifying Engaging Device VAS 5161/6 With Installation Forks VAS 5161/5 Installed Into Guide Plate VAS 5161/19

Courtesy of AUDI OF AMERICA, LLC

Exhaust Side:

Fig 9: Identifying Pressure Fork VAS 5161/2

Courtesy of AUDI OF AMERICA, LLC

Continuation:

Fig 10: Identifying Installation Cartridge VAS 5161/8

Courtesy of AUDI OF AMERICA, LLC

If the valve retainers were removed from the assembly cartridge, they must then be inserted into the : VAS5161/18 .
Press the : VAS5161/8A onto the insertion tool from above.

-- Press the : VAS5161/8A down with the : VAS5161/2 and rotate the cartridge knurled thumb screw back and forth while pulling up.

-- Release the : VAS5161/2 with the knurled thumb screw pulled.

-- Remove the : VAS5161A .

-- Repeat the procedure on each valve.

Assembling

Assemble in the reverse order of removal. Note the following:

-- Install the camshafts. Refer to CAMSHAFT, REMOVING AND INSTALLING .

-- Install the spark plugs. Refer to OVERVIEW - IGNITION SYSTEM .
