Part II
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2019 Audi A4 allroad, 2019 Audi A4 Quattro, and 2018 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.
Part I. Refer to Part I .

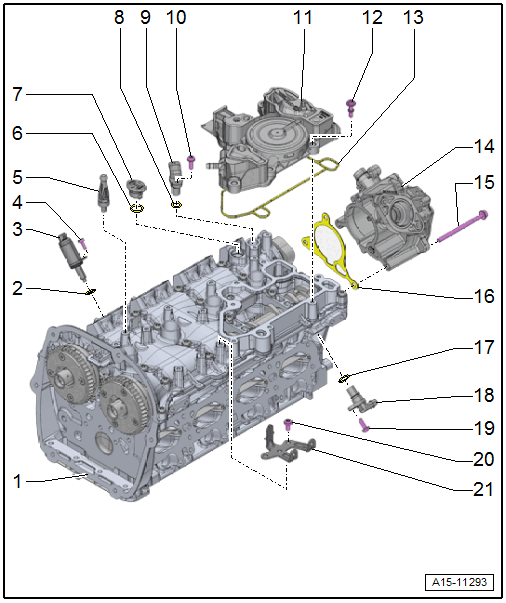

- Cylinder Head
- Only replace together with the cylinder head cover
- O-Ring
- Lubricate with engine oil
- Check for damage
- No replacement part: included in the cam adjustment actuator delivery package
- Cam Adjustment Actuator
- Cam Adjustment Actuator 1 -F366-
- Cam Adjustment Actuator 2 -F367-
- Cam Adjustment Actuator 3 -F368-
- Cam Adjustment Actuator 4 -F369-
- Cam Adjustment Actuator 5 -F370-
- Cam Adjustment Actuator 6 -F371-
- Cam Adjustment Actuator 7 -F372-
- Cam Adjustment Actuator 8 -F373-
- Removing and installing. Refer to CAM ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .
- Bring into the installation position. Refer to Installing - The cam adjustment actuator pin must be brought into the installation position. .
- Bolt
- 5 Nm
- Ball Pin
- 9 Nm
- For the engine cover
- O-Ring
- Always replace after removing.
- Coat with engine oil
- Plugs
- O-Ring
- Always replace after removing.
- Coat with engine oil
- Cam Position Sensor 3 -G300-
- Overview. Refer to OVERVIEW - IGNITION SYSTEM .
- Bolt
- Tightening specification -item 8- OVERVIEW - IGNITION SYSTEM - List Item: Bolt .
- Oil Separator
- Removing and installing. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Seal
- Always replace after removing.
- Vacuum Pump
- Removing and installing. Refer to VACUUM PUMP, REMOVING AND INSTALLING
- Bolt
- Tightening specification. Refer to VACUUM SYSTEM .
- Seal
- Always replace if damaged
- O-Ring
- Replace after removing.
- Coat with engine oil
- Cam Position Sensor -G40-
- Overview. Refer to OVERVIEW - IGNITION SYSTEM .
- Bolt
- Tightening specification -item 13- OVERVIEW - IGNITION SYSTEM - List Item: Bolt .
- Bolt
- 9 Nm
- Bracket
- For EVAP Canister Purge Regulator Valve 1 -N80-
