Overview - Cylinder Head

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2019 Audi A4 allroad, 2019 Audi A4 Quattro, and 2018 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.

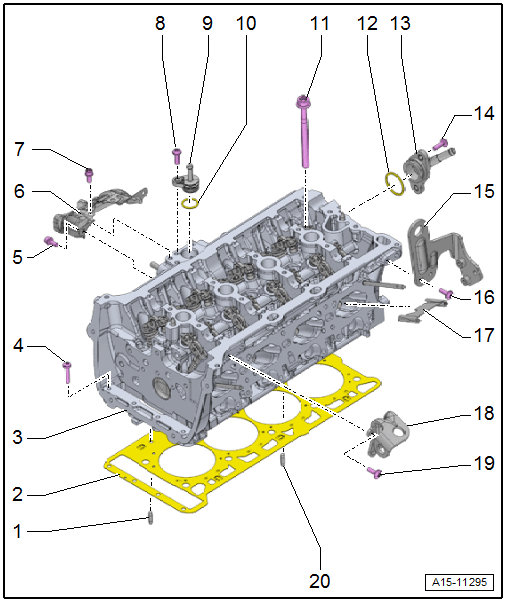

Fig 1: Cylinder Head Exploded View

Courtesy of AUDI OF AMERICA, LLC

Alignment Pin
Cylinder Head Gasket
- Always replace after removing.
- Installed position: the part number faces the cylinder head
Cylinder Head
- Checking for distortion. Refer to Fig 5.
- Only replace together with the cylinder head cover
- Removing and installing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
Bolt
- Tightening. Refer to Fig 3.
- Always replace after removing.
- Loosening. Refer to Fig 2.
Bolt
- 9 Nm
Heat Shield
Bolt
- 9 Nm
Bolt
- 9 Nm
Connection
- For coolant hose
O-Ring
- Always replace after removing.
- Coat with coolant
Cylinder Head Bolt
- Tightening. Refer to Fig 3.
- Always replace after removing.
- Loosening. Refer to Fig 2.
O-Ring
- Always replace after removing.
- Coat with coolant
Connection
- For coolant hose
Bolt
- 9 Nm
Engine Lifting Eye
Bolt
- 10 Nm + 90°
- Always replace after removing.
Partition Plate
Engine Lifting Eye
Bolt
- 10 Nm + 90°
- Always replace after removing.
Alignment Pin

Loosening the Cylinder Head

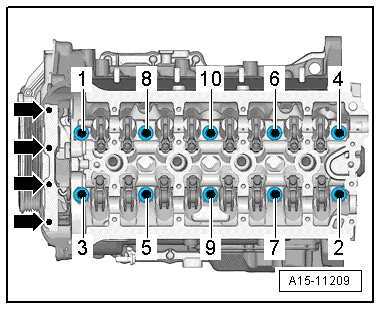

Fig 2: Cylinder Head Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Loosen the cylinder head bolts in the sequence -1 to 10-.

Cylinder Head - Tightening Specifications and Sequence

Fig 3: Cylinder Head Bolts

Courtesy of AUDI OF AMERICA, LLC

Replace the bolts that were tightened with an additional turn after removing them.

Bolt differences:
Bolt without collar
Bolt with collar -arrow-

-- Tighten the bolts in the steps shown in the sequence:

Fig 4: Cylinder Head Bolts Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Step	Screws	Tightening Specification/Additional Turn
1.	-1 through 10-	Install by hand all the way
2.	-1 through 10-	"Without collar" 40 Nm "with collar" 50 Nm, difference. Refer to OVERVIEW - CYLINDER HEAD - Bolt differences: .
3.	-1 through 10-	90° additional turn
4.	-1 through 10-	90° additional turn
5.	-arrows-	10 Nm
6.	-arrows-	90° additional turn

Cylinder Head, Checking for Distortion

Fig 5: Check Cylinder Head For Distortions

Courtesy of AUDI OF AMERICA, LLC

-- Check the cylinder head at several locations for distortion using a : VAS6075 and a feeler gauge.

Maximum permissible distortion: 0.05 mm
