Cylinder Head, Removing And Installing: Removing
Preliminary work may be required depending on the model. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- During installation, all cable ties must be installed at the same location.
- Close the open channels from the intake and exhaust tract with suitable plugs for example from the : VAS6122 .
-- If not B+ cover is present on the generator. disconnect the battery to prevent short circuit. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- If required, free up the wiring harness -4-.

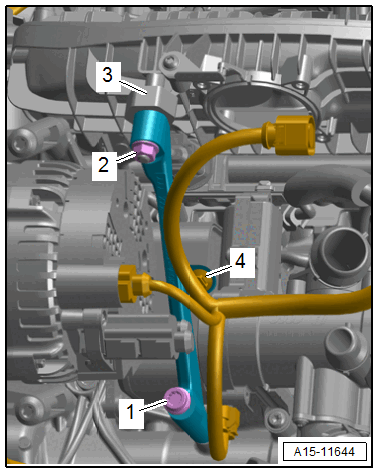

-- Remove the nut -2- and bolt -1- and remove the intake manifold support.
Sub-Assembly Bracket, Version 1:

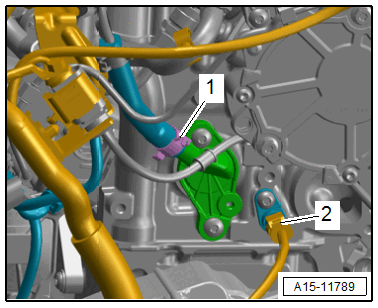

-- Disconnect the connectors:
1 - For the Oil Pressure Switch -F22- -2-
3 - For the Reduced Oil Pressure Switch -F378- -4-
5 - For the Piston Cooling Nozzle Control Valve -N522- -7-
Sub-Assembly Bracket, Version 2:
-- Disconnect the connectors:
- For the Oil Pressure Switch -F22-
- For the Reduced Oil Pressure Switch -F378-
- For the Piston Cooling Nozzle Control Valve -N522-
Continuation for All:
-- Loosen the hose clamp -1- and remove the rear coolant hose.
-- Disconnect the connector -2- for the Engine Coolant Temperature Sensor -G62-.
-- Remove the spark plugs with the : VAS6122 .
-- Remove the bolts -arrows-.
-- Remove the cylinder head bolts using the : T10070 or : T40270 in the sequence -1 through 10-.
- Make sure all wires and cables are disconnected.
- Pay attention to the tension and guide tracks when lifting the cylinder head.
-- Remove the cylinder head.
-- Lay the cylinder head on a soft surface, such as foam.
-- Seal the open channels of the intake and exhaust tract with a clean cloth or with completely clean plugs from the : VAS6122 .
