Overview - Camshaft Timing Chains

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2019 Audi A4 allroad, 2019 Audi A4 Quattro, and 2018 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.

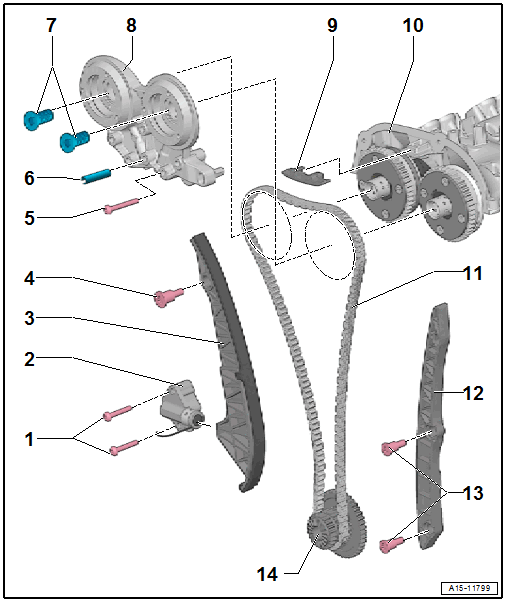

Fig 1: Camshaft Timing Chains Exploded View
GWWA15-11799Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • For steel bolts: 9 Nm
    • For aluminum bolts: 4 Nm + 90°
    • Always replace after removing.
  2. Chain Tensioner
    • Is under tension
    • Secure using : T40267  before removing
  3. Timing Chain Tensioning Rail
  4. Guide Pin
    • 20 Nm
  5. Bolt
    • Tightening Specifications and Sequence. Refer to Fig 4.
    • Always replace the aluminum bolt after removal
  6. Adapter Sleeve
    • Depending on the version, not present on every bearing bracket
  7. Control Valves
    • 35 Nm
    • Left-hand thread
    • Different versions depending on the version.
    • Remove from the : T10352A  using a tool
    • Checking. Refer to Fig 2.
  8. Bearing Bracket
  9. Camshaft Timing Chain Guide Rail
  10. Camshaft Housing
  11. Camshaft Timing Chain
    • Before removing, mark the running direction with paint
    • Removing and installing. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .
    • After procedures on the chain drive perform the adaptation using the Vehicle Diagnostic Tester
  12. Camshaft Timing Chain Guide Rail
  13. Guide Pin
    • 20 Nm
  14. Three Stage Chain Sprocket
    • Crankshaft
    • Installation position. Refer to Fig 5.

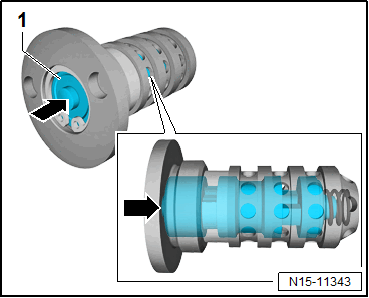

Checking the Control Valve

Fig 2: Checking The Control Valve
GWWN15-11343Courtesy of AUDI OF AMERICA, LLC

Bearing Bracket - Assembly Instructions

Fig 3: Bearing Bracket - Assembly Instructions
GWWN15-11326Courtesy of AUDI OF AMERICA, LLC

If a new bearing bracket -3- with adapter sleeve -4- should be installed, it must be checked before installing the bearing bracket in the hole -arrow- in the cylinder head -1-.

If the hole -arrow- is not designed for using the adapter sleeve -4- the adapter sleeve must be removed from the bearing bracket. For this hole the short bolt -2- should be used. Refer to the Parts Information for the correct bolt.

Bearing Bracket - Tightening Specifications and Sequence

Fig 4: Bearing Bracket - Tightening Sequence
GWWA15-11797Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in the steps shown in the sequence:

For Steel Bolts

Step Bolts Tightening Specifications
1. -1 to 6- Install by hand all the way
2. -1 to 6- 9 Nm

For Aluminum Bolts

Step Bolts Tightening Specification/Additional Turn
1. -1 to 6- Install by hand all the way
2. -1 to 6- 4 Nm
3. -1 to 6- 180° additional turn

Three Stage Chain Sprocket - Installed Position

Fig 5: Chain Sprocket Crankshaft
GWWA15-10469Courtesy of AUDI OF AMERICA, LLC
