Bearing Bracket, Removing And Installing: Removing

-- Remove the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .

TIP:

The control valves have left-hand thread.

-- Remove the left and right control valves using the Assembly Tool -1- in the direction of -arrow-.

Fig 1: Removing Control Valve

Courtesy of AUDI OF AMERICA, LLC

Depending on the version of the control valve use one of the listed tools:

• : T10352
• : T10352/1
• : T10352/2
• : T10352/3
• : T10352/4

-- To do so counterhold on the vibration damper with the : T40263  , : T40314  and a 24 mm Socket.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

Fig 2: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

• Carefully remove the bearing bracket without tilting it.

-- Remove the bearing mount.

-- Remove the plug -arrow-.

Fig 3: Identifying Plug

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

Fig 4: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow-.

Fig 5: Identifying Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Install the : T40243  on the cylinder head -lower arrows-.

Fig 6: Identifying Version 2

Courtesy of AUDI OF AMERICA, LLC

• The help of a second technician is necessary for the following steps.

-- Press the chain tensioner circlip -1- together and hold it.

-- Slowly press and hold the : T40243  in direction of -arrow-. This will push back the chain tensioner.

TIP:

The chain tensioner is lubricated with oil and can only be pushed back slowly by applying constant pressure.

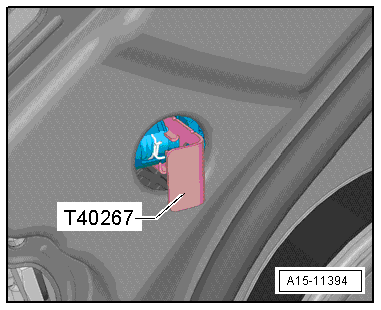

-- Lock the chain tensioner with the : T40267  .

Fig 7: Securing Chain Tensioner

Courtesy of AUDI OF AMERICA, LLC

-- Remove the : T40243  .
