After-Run Coolant Pump -V51-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2020 Audi A4 allroad, 2019 Audi A4 allroad, 2018 Audi A4 allroad, 2017 Audi A4 allroad, and 2017 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Vehicle with particulate filter: remove the bolts -arrows- for the bracket -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

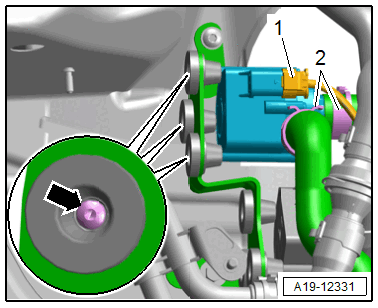

-- Disconnect the connector -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place a cloth underneath to catch any escaping coolant.

-- Loosen the hose clamps -2- to clamp off the coolant hoses with the : 3094 and remove them.

-- Remove the bolts -arrow- and the After-Run Coolant Pump -V51-.
